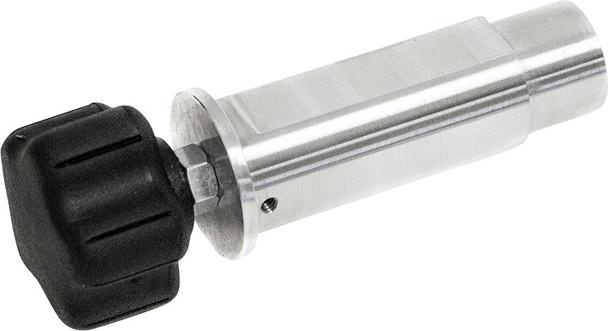

FEULING OIL PUMP CORP. Alignment Tool - Crankshaft/Oil Pump - Twin Cam/M8 9017

Proper oil pump alignment is critical to engine reliability—misalignment causes poor scavenge port sealing and potential oil starvation under racing conditions. The Feuling Alignment Tool eliminates guesswork by ensuring your oil pump gear flats align perfectly with crankshaft flats before final assembly, guaranteeing optimal flow and seal integrity. This precision-engineered tool transforms a risky assembly procedure into a repeatable, confidence-building process.

The recommended assembly method is straightforward: assemble your cam plate, oil pump, camshaft, and related components on the bench, use this tool to verify alignment, then install the complete unit into the cam chest as a single assembly. This approach consistently delivers the best seal on the back scavenge port and prevents costly misalignment errors that compromise engine performance.

• Crankshaft/oil pump alignment
• Twin Cam compatible
• M8 compatible
• Bench assembly recommended
• Horizontal alignment (Twin Cam)
• Vertical alignment (M8)
• Improves scavenge port seal
• Precision-engineered tool
• MPN: 9017
