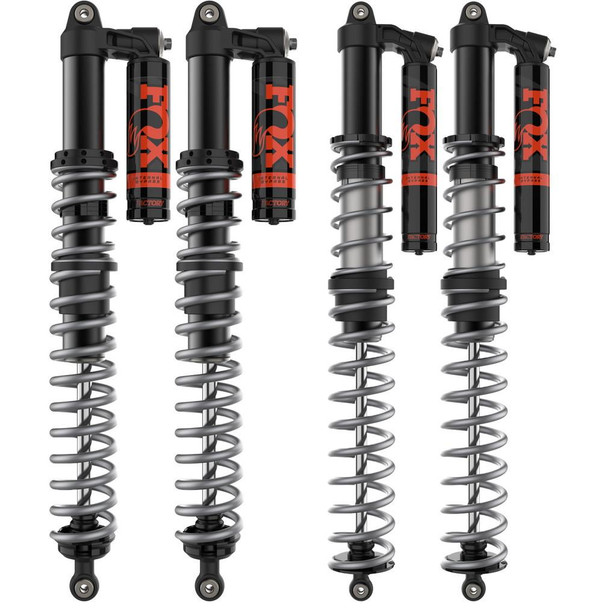

Fox Shock Package Kawasaki KRX 1000 Teryx 4-Seat UTV Rear/Front

Shock Set Features Front/Rear

• Position-sensitive Internal Bypass technology delivers plush, predictable ride while preventing harsh bottoming and top-outs
• Genuine Kashima Coat for improved durability
• Velocity sensitive valving & high flow damping piston
• Strong, 7/8” hard chrome plated steel shaft
• Direct replacement, bolt-on shock for stock UTV’s
• Dual rate, application specific coil springs
• Dual Speed Compression (DSC)
• Wide range rebound
• Spring preload
• Spring rate crossover

Factory Race Series 2.5 Internal Bypass Shock Adjustable Specs (front):

TRAVEL: 10.94
EXTENDED LENGTH: 33.44
COMPRESSED LENGTH: 22.5
TOP MOUNT: Eyelet
BOTTOM MOUNT: Eyelet

Factory Race Series 3.0 Internal Bypass Shock Adjustable Specs (rear):

TRAVEL: 15.5
EXTENDED LENGTH: 41
COMPRESSED LENGTH: 25.5
TOP MOUNT: Eyelet
BOTTOM MOUNT: Eyelet

Kit Includes:

• Pair of front Factory Race Series 2.5 Internal Bypass Adjustable Shocks with springs
• Pair of rear Factory Race Series 3.0 Internal Bypass Adjustable Shocks with springs

Fitment:

2023 - KRX 1000 Teryx4
2022 - KRX 1000 Teryx4
2021 - KRX 1000 Teryx4
2020 - KRX 1000 Teryx4

**These shocks are direct replacments, bolt-on shocks for stock UTV's
