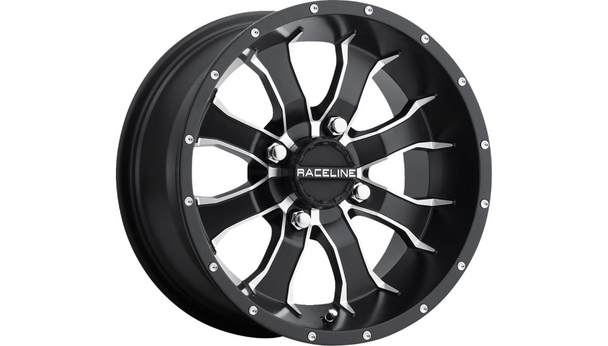

Raceline Mamba 14" UTV Wheels 28" Klever X/T Tires Pioneer 1000 / Talon

Tire Specs

PRODUCT NAME TIRE
STYLE UTILITY
TYPE TUBELESS
MOUNTING POSITION FRONT/REAR
TREAD PATTERN/MODEL KLEVER X/T
MARKET SEGMENT ATV / UTV
TIRE DIAMETER 28"
WIDTH 10"
RIM DIAMETER 14"
TIRE SIZE 28 X 10R14
MANUFACTURER SUGGESTED MIN WHEEL WIDTH 6.5"
MANUFACTURER SUGGESTED MAX WHEEL WIDTH 8.5"
PLY RATING 8 PLY
CONSTRUCTION R (RADIAL)
TREAD DEPTH 17 MM (11/16")
STANDARD NHS (NOT FOR HIGHWAY SERVICE)

Rim Specs

PRODUCT NAME WHEEL
MODEL MAMBA
BASE COLOR BLACK
FINISH SATIN
COLOR/FINISH BLACK / MACHINED / SATIN
MATERIAL ALUMINUM
BOLT HOLE PATTERN 4/137
WHEEL OFFSET 5+2 (+10 MM)
RIM DIAMETER 14"
RIM WIDTH 7"
SIZE 14X7
MOUNTING POSITION FRONT/REAR
LOAD CAPACITY 800 LB

Fits:

Can-Am:
Maverick X3 (2017-2023)
Maverick X3 900 HO (2018)
Maverick X3 Max (2018-2023)
Maverick X3 Max R (2017-2021)
Maverick X3 Max RR (2020-2023)
Maverick X3 R (2017-2021)
Maverick X3 RR (2020-2023)
Note: On Maverick X3 you may have to remove or modify mud scraper to allow clearance for various 14" wheels.

Honda:
Pioneer 1000 (2016-2023)
Pioneer 1000-5 (2016-2023)
Talon 1000R (2019-2022)
Talon 1000RS (2023)
Talon 1000X (2019-2022)
Talon 1000X-4 (2020-2022)
Talon 1000XS (2023)
Talon 1000XS-4 (2023)
