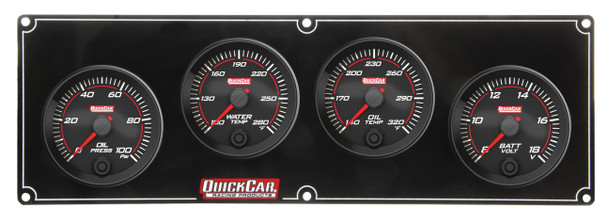

QuickCar Redline 4-Gauge Panel Oil Pressure Water Temperature Oil Temperature Voltage 69-4027

Redline 4 Gauge Panel OP/WT/OT/Volt

The QuickCar Redline 4 Gauge Panel offers precise monitoring of essential engine parameters, including oil pressure, water temperature, oil temperature, and voltage. Designed for high-performance applications, this pre-wired assembly features 2-5/8-inch diameter electric stepper motor gauges with adjustable warning levels, all mounted on a black face panel for a sleek appearance.

• Comprehensive Monitoring: Equipped with gauges for oil pressure, water temperature, oil temperature, and voltage, providing real-time data on critical engine functions.
• Advanced Warning System: Each gauge includes a programmable warning function that alerts the driver to potential issues by changing the backlight color and flashing.
• Easy Installation: The panel comes pre-wired with all necessary senders, facilitating a straightforward setup process.
• Durable Construction: Housed in a lightweight aluminum panel with a black face, ensuring both durability and a professional appearance.
• High-Quality Gauges: Features 2-5/8-inch diameter electric stepper motor gauges known for their reliability and accuracy.

• Panel Dimensions: 10-1/2 inches wide x 4-1/2 inches high.
• Gauge Diameter: 2-5/8 inches.
• Voltage Gauge Range: 0-16 volts.
• Oil Pressure Gauge Range: 0-100 PSI.
• Water Temperature Gauge Range: 100-280°F.
• Oil Temperature Gauge Range: 100-340°F.
• Warning Light Function: Adjustable warning levels with backlight color change and flashing alert.
• Included Components: Pre-wired panel, all necessary senders, and mounting hardware.
